HSR85HB THK滑塊 THK導軌 日本滑塊導軌

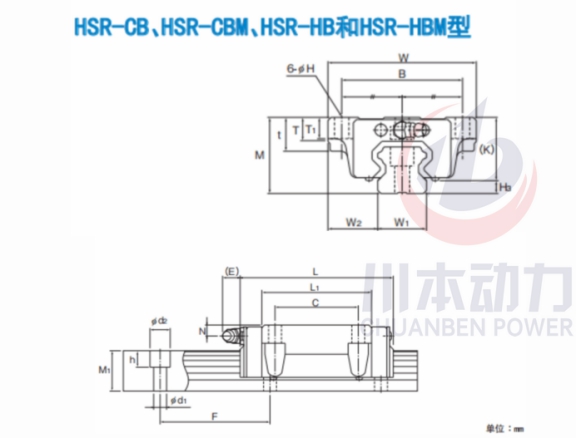

外形尺寸 | 高度M | 110 | mm |
寬度W | 215 | mm | |
長度L | 303 | mm | |
LM滑塊尺寸 | B | 185 | mm |
C | 140 | mm | |
H | 18 | mm | |
L1 | 236 | mm | |
t | 55 | mm | |
T | 28 | mm | |
T1 | 30 | mm | |
K | 94 | mm | |
N | 23 | mm | |
E | 16 | mm | |
油嘴 | B-PT1/8 | mm | |
H3 | H3 | 16 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 85 | mm |
W2 | 65 | mm | |
高度M1 | 65 | mm | |
孔距F | 180 | mm | |
d1*d2*h | 24*35*28 | mm | |
長度*Max | 3000 | mm | |
基本動額定載荷 | C | 367 | kN |
基本靜額定載荷 | C0 | 464 | kN |
靜態容許力矩 | MA單滑塊 | 16.9 | kN-m |
MA雙滑塊 | 81 | kN-m | |
MB單滑塊 | 16.9 | kN-m | |
MB雙滑塊 | 81 | kN-m | |
MC單滑塊 | 16.7 | kN-m | |
重量 | LM滑塊 | 23 | kg |
LM軌道 | 35.2 | kg/m |
