HSR65A THK滑塊 THK導軌 日本滑塊導軌

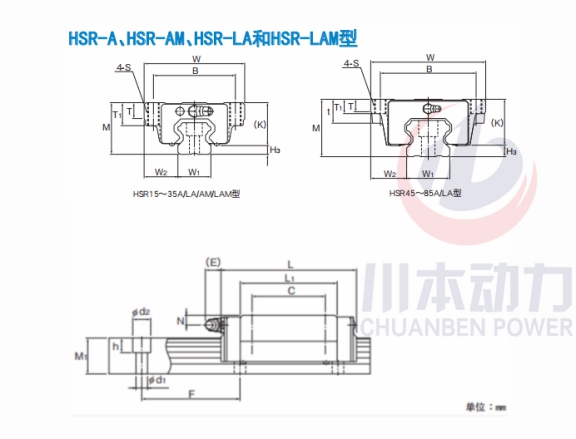

外形尺寸 | 高度M | 90 | mm |
寬度W | 170 | mm | |
長度L | 186 | mm | |
LM滑塊尺寸 | B | 142 | mm |
C | 110 | mm | |
S | M16 | mm | |
L1 | 147 | mm | |
t | 37 | mm | |
T | 21.5 | mm | |
T1 | 23 | mm | |
K | 76 | mm | |
N | 19 | mm | |
E | 16 | mm | |
油嘴 | B-PT1/8 | mm | |
H3 | H3 | 14 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 63 | mm |
W2 | 53.5 | mm | |
高度M1 | 53 | mm | |
孔距F | 150 | mm | |
d1*d2*h | 18*26*22 | mm | |
長度*Max | 3000 | mm | |
基本動額定載荷 | C | 195 | kN |
基本靜額定載荷 | C0 | 228 | kN |
靜態容許力矩 | MA單滑塊 | 5.08 | kN-m |
MA雙滑塊 | 25 | kN-m | |
MB單滑塊 | 5.08 | kN-m | |
MB雙滑塊 | 25 | kN-m | |
MC單滑塊 | 6.2 | kN-m | |
重量 | LM滑塊 | 8.5 | kg |
LM軌道 | 22.5 | kg/m |
