HSR35LRM THK滑塊 THK導軌 日本滑塊導軌

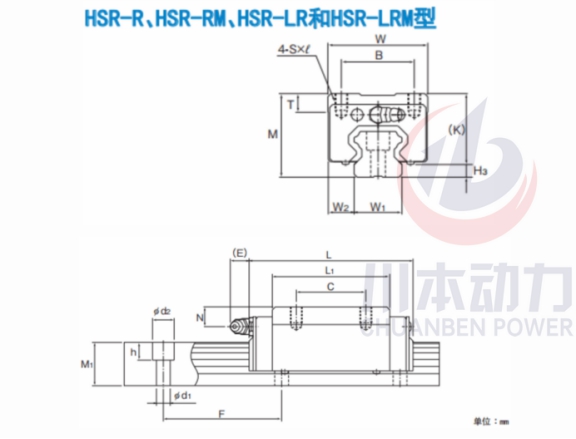

外形尺寸 | 高度M | 55 | mm |
寬度W | 70 | mm | |
長度L | 134.8 | mm | |
LM滑塊尺寸 | B | 50 | mm |
C | 72 | mm | |
S*l | M8*12 | mm | |
L1 | 105.8 | mm | |
T | 11.7 | mm | |
K | 47.5 | mm | |
N | 15 | mm | |
E | 12 | mm | |
油嘴 | B-M6F | mm | |
H3 | H3 | 7.5 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 34 | mm |
W2 | 18 | mm | |
高度M1 | 29 | mm | |
孔距F | 80 | mm | |
d1*d2*h | 9*14*12 | mm | |
長度*Max | 2520 | mm | |
基本動額定載荷 | C | 65 | kN |
基本靜額定載荷 | C0 | 91.7 | kN |
靜態容許力矩 | MA單滑塊 | 1.49 | kN-m |
MA雙滑塊 | 7.13 | kN-m | |
MB單滑塊 | 1.49 | kN-m | |
MB雙滑塊 | 7.13 | kN-m | |
MC單滑塊 | 1.37 | kN-m | |
重量 | LM滑塊 | 2 | kg |
LM軌道 | 6.6 | kg/m |
