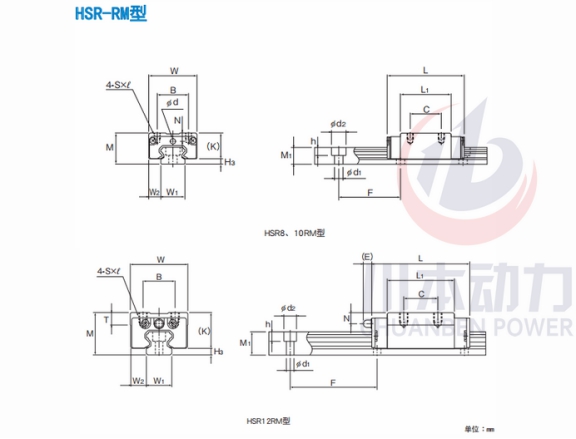

HSR12RM THK滑塊 THK導(dǎo)軌 日本滑塊導(dǎo)軌
外形尺寸 | 高度M | 20 | mm |
寬度W | 27 | mm | |
長度L | 45 | mm | |
LM滑塊尺寸 | B | 15 | mm |
C | 15 | mm | |
S*l | M4*4.5 | mm | |
L1 | 30.5 | mm | |
T | 6 | mm | |
K | 16.9 | mm | |
N | 5.2 | mm | |
E | 4 | mm | |
潤滑孔d | - | mm | |
油嘴 | PB107 | mm | |
H3 | H3 | 3.1 | mm |
LM導(dǎo)軌尺寸 | 寬度W1±0.05 | 12 | mm |
W2 | 7.5 | mm | |
高度M1 | 11 | mm | |
孔距F | 40 | mm | |
d1*d2*h | 3.5*6*4.5 | mm | |
長度*Max | 1240 | mm | |
基本動額定載荷 | C | 4.7 | kN |
基本靜額定載荷 | C0 | 8.53 | kN |
靜態(tài)容許力矩 | MA單滑塊 | 0.0409 | kN-m |
MA雙滑塊 | 0.228 | kN-m | |
MB單滑塊 | 0.0409 | kN-m | |
MB雙滑塊 | 0.228 | kN-m | |
MC單滑塊 | 0.0445 | kN-m | |
重量 | LM滑塊 | 0.08 | kg |
LM軌道 | 0.83 | kg/m |
