HGL35CA 臺灣HIWIN滑塊 HIWIN導軌 臺灣上銀滑塊導軌

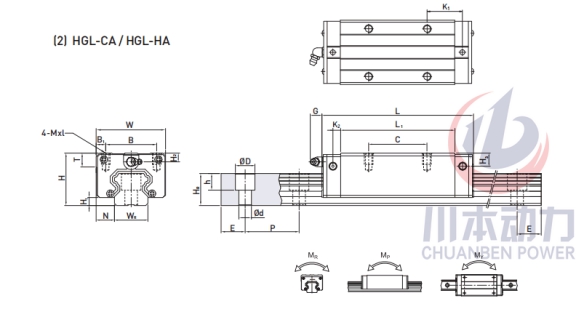

組件尺寸 | H | 48 | mm |
H1 | 7.5 | mm | |
N | 18 | mm | |
滑塊尺寸 | W | 70 | mm |
B | 50 | mm | |
B1 | 10 | mm | |
C | 50 | mm | |
L1 | 80 | mm | |
L | 112.4 | mm | |
K1 | 20.6 | mm | |
K2 | 7 | mm | |
G | 12 | mm | |
MxL | M8*12 | mm | |
T | 10.2 | mm | |
H2 | 9 | mm | |
H3 | 12.6 | mm | |
導軌尺寸 | WR | 34 | mm |
HR | 29 | mm | |
D | 14 | mm | |
h | 12 | mm | |
d | 9 | mm | |
P | 80 | mm | |
E | 20 | mm | |
導軌的固定螺栓尺寸 | 導軌的固定螺栓尺寸 | M8*25 | mm |
基本動額定載荷 | C | 49.52 | kN |
基本靜額定載荷 | C0 | 69.16 | kN |
容許靜力矩 | MR | 1.16 | kN-m |
MP | 0.81 | kN-m | |
MY | 0.81 | kN-m | |
重量 | 滑塊 | 1.14 | kg |
導軌 | 6.3 | kg/m |
