EGH15CA 臺灣HIWIN滑塊 HIWIN導軌 臺灣上銀滑塊導軌

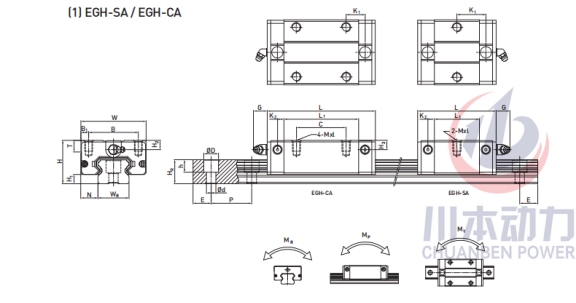

組件尺寸 | H | 24 | mm |
H1 | 4.5 | mm | |
N | 9.5 | mm | |
滑塊尺寸 | W | 34 | mm |
B | 26 | mm | |
B1 | 4 | mm | |
C | 26 | mm | |
L1 | 39.8 | mm | |
L | 56.8 | mm | |
K1 | 10.15 | mm | |
G | 5.7 | mm | |
MxL | M4*6 | mm | |
T | 6 | mm | |
H2 | 5.5 | mm | |
H3 | 6 | mm | |
導軌尺寸 | WR | 15 | mm |
HR | 12.5 | mm | |
D | 6 | mm | |
h | 4.5 | mm | |
d | 3.5 | mm | |
P | 60 | mm | |
E | 20 | mm | |
導軌的固定螺栓尺寸 | 導軌的固定螺栓尺寸 | M3*16 | mm |
基本動額定載荷 | C | 7.83 | kN |
基本靜額定載荷 | C0 | 16.19 | kN |
容許靜力矩 | MR | 0.13 | kN-m |
MP | 0.10 | kN-m | |
MY | 0.10 | kN-m | |
重量 | 滑塊 | 0.15 | kg |
導軌 | 1.25 | kg/m |
